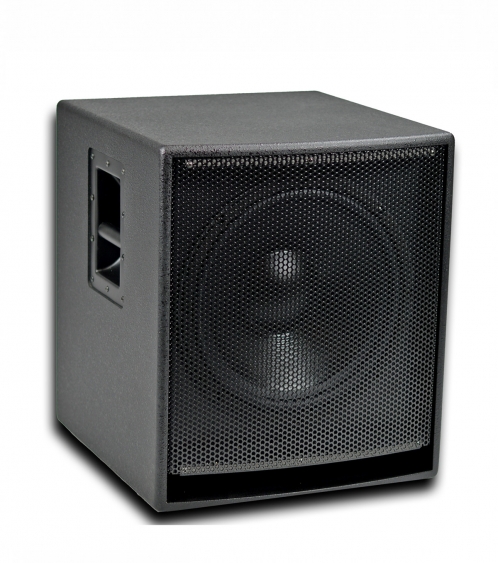

Viscount Subwoofer VS.15A

https://www.fnx.ch/web/image/product.template/53322/image_1920?unique=315b2ba

The VS.15A Sub is a subwoofer specially designed by Viscount to extend the sound depth in organ amplification systems. Featuring an integrated amplifier and a robust yet lightweight structure, the VS.15A Sub combines with other Viscount organ speaker systems to create user-friendly, high-quality setups, ensuring maximum reliability even in the most critical situations. Equipped with a powerful 625 Wrms amplifier featuring a built-in anti-clipping device to automatically prevent amplifier saturation and resulting signal distortion, the VS.15A Sub also includes a crossover filter that allows selection of frequencies to send to other speaker systems. This makes it incredibly easy to produce extremely efficient amplification systems with a frequency response extending down to the lowest frequencies (20 Hz).

CHF 1,440.00 1440.0 CHF CHF 1,440.00

CHF 1,440.00

Price on request

  • Brand
  • Condition

This combination does not exist.

Brand: Viscount
Condition: new
Specifications
  • Audio inputs: 2x balanced jack
  • Distortion (THD + N): <0.1%
  • Input impedance: 20 kΩ (balanced) / 10 kΩ (unbalanced)
  • Input sensitivity: 0 dB (0.775 V)
  • Sensitivity: 98 dB (SPL 1W / 1m)
  • Audio outputs: 2x balanced jack
  • Frequency response: 20 Hz to 100 Hz (-10 dB)
  • Crossover frequency: 63 Hz @ 12 dB/oct
  • Custom woofer: 15"

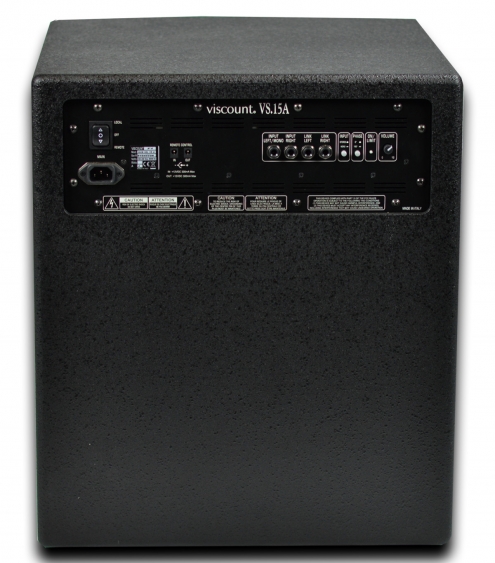

  • Controls: Volume, Lift GND, Phase Reverse, Stereo/Mono input selector
  • Power supply: See label on rear panel​
  • Cabinet: Multi-ply birch wood
  • Max output power: 625 Wrms (1250 W peak)
  • Protections: Thermal, DC output, Anti-bump, Anti-clipping
  • Dimensions (W x H x D): 47.3 x 56.1 x 50.7 cm
  • System weight: 38 kg​
